Understanding Firewalls: Types, Functions, and How They Safeguard Your Network

A firewall is a kind of security tool, which may be composed of either software or hardware, used for monitoring and controlling the flow of data in or out through a network. It works by blocking dangerous traffic while allowing only safe data according to the pre-set security rules.

You can visualize a firewall as a fence separating the public internet from your private network or device. It acts as a guard against the cyber threats of the internet and helps to protect your data. Firewalls continue to adapt and evolve as challenges to network security grow.

What Is a Firewall in Computer Security?

A firewall course is a mechanism that functions as a gatekeeper that oversees data traffic and decides what should be allowed through versus what should be blocked. It could be installed as a software program on the end user's computer or exist as a hardware device on the network.

1. Software Firewall

A software firewall is loaded on individual devices, like PCs or cell phones. It filters network traffic based on rules determined by the user and may permit only certain applications to connect while blocking others. This type of firewall thus acts to protect a single device from all types of cyber threats, but must be installed and maintained on each device separately. Moreover, not every device supports the same software firewall; thus, in some instances, there will be a need for different firewalls for different devices.

2. Hardware Firewall

The hardware firewall is considered a physical device that protects an entire network. Following traffic between zones, it can be conveniently set up for multiple devices to protect; however, it cannot defend against attacking incidents that may occur from inside the network, that is, an attack perpetrated by a disgruntled worker.

3. Packet Filtering Firewall

Packet filtering firewall checks against the basic information in the data packets, such as source/destination IP addresses, port numbers, and protocol. It compares this information with a set of rules to decide whether to allow or block the packet. Each packet is treated independently; it does not maintain a connection state. Therefore, it will not be able to prevent some advanced kinds of attacks.

4. Circuit-Level Gateway

Circuit-level gateways accept or reject connections based on typical TCP handshaking, while not inspecting the packet data. If a packet were injected maliciously on an otherwise valid path, it would evade detection. Thus, they should be deployed in conjunction with other types of firewalls.

5. Proxy Firewall (Application-Level Firewall)

A proxy firewall functions as a mediator between your device and the Internet. Its work entails inspecting the actual contents of data packets and filtering requests on the basis of strict filtering rules. While thorough, this can slow down the connection. It further hides the actual IP addresses of internal users, thereby providing additional privacy.

6. Cloud Firewall

Cloud firewalls are online security services that protect networks and applications against unauthorized access. Unlike traditional firewalls, cloud-based systems work entirely from the cloud and are usually provided through an arrangement called Software as a Service (SaaS). They are particularly suited for protecting cloud-based applications.

7. Stateful Inspection Firewall

It is an advanced firewall that takes into account active connections and checks incoming packets to determine if they are part of the trusted session. It memorizes parameters such as source and destination IP and ports, suspicious or unverified connections are denied, providing superior levels of security than mere packet filtering.

8. Next-Generation Firewall (NGFW)

NGFW stomp today on relevant data packet inspection (DPI) technologies and intrusion prevention systems (IPS), thus merging conventional technology with the newest. Their work involves the deeper introspection of traffic and multi-layered network communication to block the more modern threats.

9. Network Address Translation (NAT) Firewall

NAT unintentionally masks the internal devices behind a public IP address so that they may communicate data across the private network to the Internet. It thus eliminates the probability of an external threat exposing internal devices.

Firewall Placement within the Network

• Depending upon the security need, the firewall can be placed at various locations on the network:

• Between Internal and External Networks: To block threats coming from outside.

• Between External Networks and DMZ (Demilitarized Zone): To protect servers that are accessible to the public.

• Between Internal Network Segments: To control the traffic within the network.

• Some networks apply a single firewall, while more developed ones will have several firewalls placed at different points.

Firewalls Limitations

• Cost: Hardware firewalls are expensive compared to software ones.

• Please Restrict Users: Stringent firewall rules can block necessary actions for employees.

• Slowing Down the Network: Firewalls that check every data packet may severely affect network performance.

• Timely Update: Every firewall must be regularly maintained and upgraded to safeguard against newly discovered threats.

• Complex Setup: Setting up firewalls, which is complex by itself, is also a task that requires qualified professionals to perform management activities.

Frequently Asked Questions (FAQ)

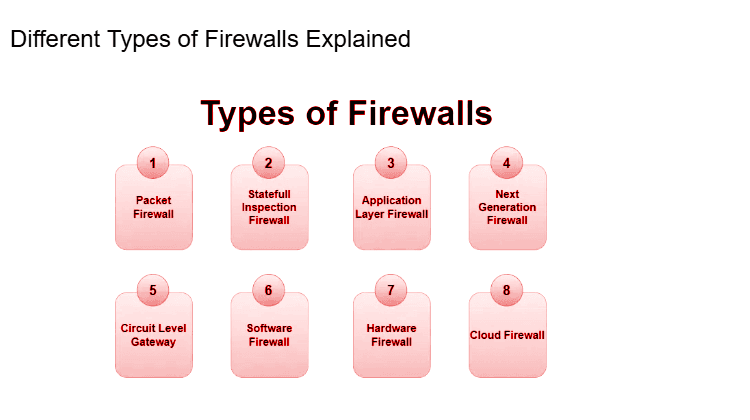

1: What are the different types of firewalls?

Common types are packet filtering, stateful inspection, proxy, next-generation, hardware, software, and cloud firewalls.

2: Which firewall is best for commercial entities?

Next-generation firewalls (NGFW) are best because they have advanced threat detection and many security features.

3: What is the difference between hardware and software firewalls?

Hardware firewalls secure entire networks while software firewalls secure individual devices.

4: What is the major function deployed by packet-filtering firewalls?

They compare packets with security requirements and either permit or stop packets from passing through.

5: Can I use more than one type of firewall?

Yes! Using multiple firewalls creates additional protection layers.

Firewalls work hard to secure the network from attacks asserting their presence in cyberspace. Different firewalls perform different functions—from simple traffic filtering to deep inspection of data packets. Picking the right firewall (or firewalls) for your network size, type, and security needs will mean the protection of your data while having smooth network services.
